Fix isstable for discrete Dual state-space to check eigenvalues#1057

Merged
baggepinnen merged 1 commit into
masterfrom
fix/isstable-dual-discrete
May 16, 2026
Merged

Fix isstable for discrete Dual state-space to check eigenvalues#1057
baggepinnen merged 1 commit into
masterfrom
fix/isstable-dual-discrete

Conversation

@baggepinnen
Copy link
Copy Markdown
Member

Summary

The isstable specialization for StateSpace{<:Discrete, <:ForwardDiff.Dual} checked |A[i,j]| < 1 element-wise rather than |λ(A)| < 1. This is unrelated to discrete-time stability.

Example counter-example before the fix:

A = 0.9 * ones(2,2)   # entries all < 1
# eigenvalues: 0.0, 1.8 → not stable, but old code returned true

The continuous-time Dual specialization immediately above already uses eigvals correctly; this aligns the discrete one with it.

Test plan

  • Construct a discrete Dual state-space with entries < 1 but spectral radius > 1, confirm isstable returns false.
  • Existing tests still pass.

🤖 Generated with Claude Code

The discrete `ForwardDiff.Dual` specialization of `isstable` compared
the magnitudes of `A`'s entries against 1 instead of the magnitudes of
its eigenvalues, which is unrelated to discrete-time stability. For
example, `A = 0.9*ones(2,2)` has all entries below 1 but eigenvalue 1.8.

Now mirrors the continuous-time `ForwardDiff.Dual` specialization on
the line above and uses `eigvals` to evaluate the stability criterion.

Co-Authored-By: Claude Opus 4.7 (1M context) <noreply@anthropic.com>
@JuliaControlBot
Copy link
Copy Markdown

This is an automated message.

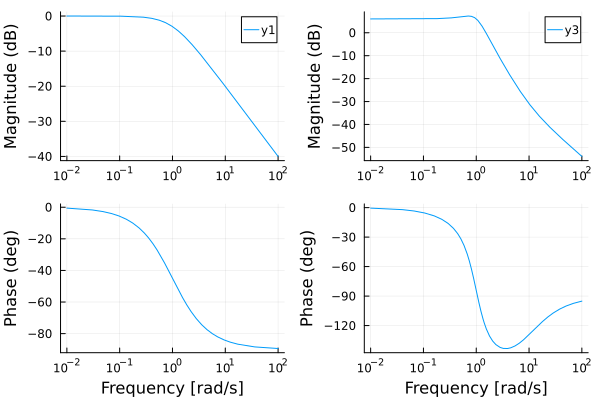

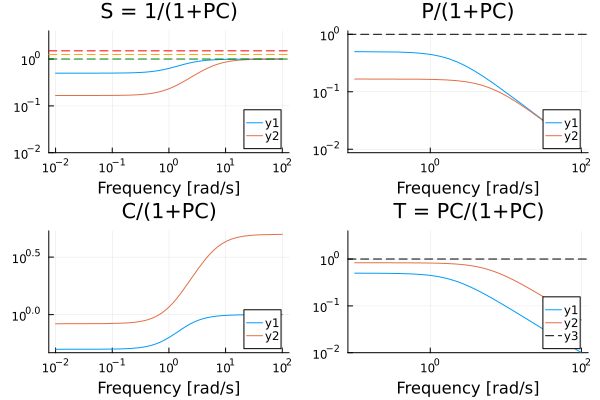

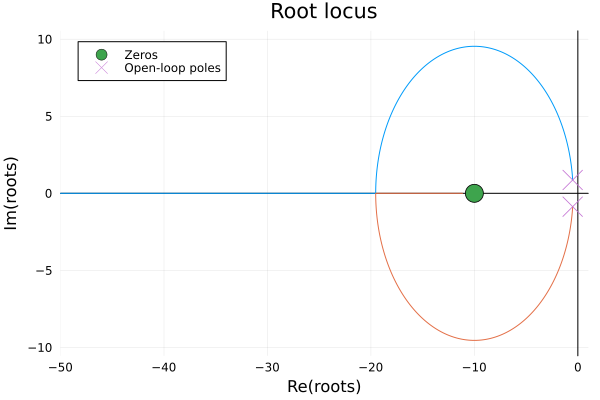

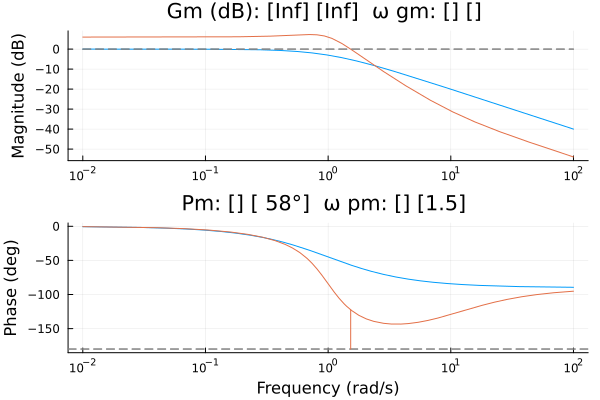

Plots were compared to references. 4/11 images have changed, see differences below.
After pulling this PR, please update the reference images by creating a PR to ControlExamplePlots.jl here.

Difference Reference Image New Image
✔️ 0.0 Reference New
✔️ 0.0 Reference New
✔️ 0.0 Reference New
✔️ 0.0 Reference New

@codecov
Copy link
Copy Markdown

codecov Bot commented May 15, 2026

Codecov Report

❌ Patch coverage is 0% with 1 line in your changes missing coverage. Please review.
✅ Project coverage is 91.61%. Comparing base (0aa6e4c) to head (68a593a).

Files with missing lines Patch % Lines
lib/ControlSystemsBase/src/types/StateSpace.jl 0.00% 1 Missing ⚠️
Additional details and impacted files
@@           Coverage Diff           @@
##           master    #1057   +/-   ##
=======================================
  Coverage   91.61%   91.61%
=======================================
  Files          42       42
  Lines        5653     5653
=======================================
  Hits         5179     5179
  Misses        474      474

☔ View full report in Codecov by Sentry.
📢 Have feedback on the report? Share it here.

🚀 New features to boost your workflow:
  • ❄️ Test Analytics: Detect flaky tests, report on failures, and find test suite problems.

@baggepinnen baggepinnen merged commit f3c1dec into master May 16, 2026
5 of 6 checks passed
@baggepinnen baggepinnen deleted the fix/isstable-dual-discrete branch May 16, 2026 03:58
